4" x 5' Spiral Pipe

Skip to the beginning of the images gallery

DPP240405

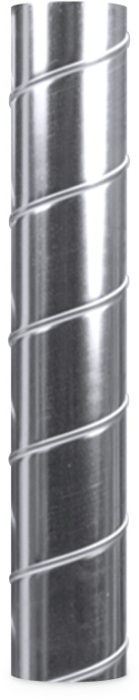

4" x 5' Spiral Pipe

$39.95

Industrial-grade, 24 gauge sheet metal ducting with spiral reinforcement. Recommended for systems 5HP and larger. Note: Actual length is 2" shorter than listed to account for the length of installed coupling adapters/fittings between multiple pipes.

Overview

Industrial Grade Material Handling Ductwork

Spiral piping is the ductwork of choice for shop owners in need of reinforced, material conveying equipment, and is recommended for commercial dust collection applications with systems 5HP and larger. Standard, Snap-Lock ductwork may collapse under the high suction pressures of larger dust collection systems, and in those installations spiral pipe is absolutely necessary.

Spiral pipe fittings can be connected using 4" dia. Spiral Pipe Adapters or by welding Angle Rings Flanges to both ends and bolting them together.

Please Note: The actual length of this unit is 2" shorter than listed to account for the coupling adapters that are installed between spiral pipe fittings i.e. a 5-foot duct is actually 58" long. Select an item and refer to the specifications to see more detailed info on each SKU.

Example installation of spiral pipe for dust collection

Specs

More Information
SKU	DPP240405
Ductwork Type	Spiral Pipe
Connection Type	Female
Shape	Round
Primary Build Materials	Galvanized Steel
Thickness	24 Gauge
Static Resistance Rating	Conductive (Metal)
Color	Silver
Width	4"
Length	58"
Height	4"
Actual Weight (lbs)	5.9
Manufacturer	N/A
Warranty Information	N/A
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

FAQ

How do I connect Spiral Pipe components?

Industrial, spiral pipe components are raw on both ends. The simplest way to connect them is to use our Spiral Pipe Adapters; crimped on both ends, these fittings slip into each raw pipe and can be secured in place using machine screws or pop rivets.

Can Spiral Pipe be crimped?

No, not with common hand tools. Due to the pipe's heavy gauge and reinforced spiral beading, the pipe can only be crimped with a motorized press. It is much simpler to use Oneida Air Systems' spiral pipe adapters to couple spiral pipe components together.

What material do you suggest for ductwork underneath a poured concrete floor for a small shop?

A lot of customers use PVC pipe, but we don't recommend using it. We would instead recommend using our spiral ductwork since it's pretty substantial. However, it has to be coated so that it will be rust proof.
