DBK040000

4" Supercell Ductwork Starter Kit

$695.00

Upgrade your Supercell dust collector to connect to multiple tools simultaneously. Includes 3x manual blast gates for flexible tool connections throughout the shop. Combine this kit's high-pressure rated hose with the Supercell's own included hose for up to 50 feet of length. Includes an additional 2.5" x 25' vacuum hose accessory kit with floor wand, brush tool, and more!

Overview

Connect Your Supercell - Plain and Simple

Traditional dust collectors require a carefully planned duct layout to minimize pressure and suction loss throughout the system. But not so with the Supercell! It's high-pressure, universal design can accommodate nearly any type of layout - even one formed entirely of flex hose!

This Starter Kit includes everything you need to connect your new Supercell dust collector to up to three tools at once, with manual blast gates for controlling airflow to each port. The kit also comes equipped with our 25-foot CleanShop Hose Kit for connecting the Supercell to smaller, 2.5" dust ports

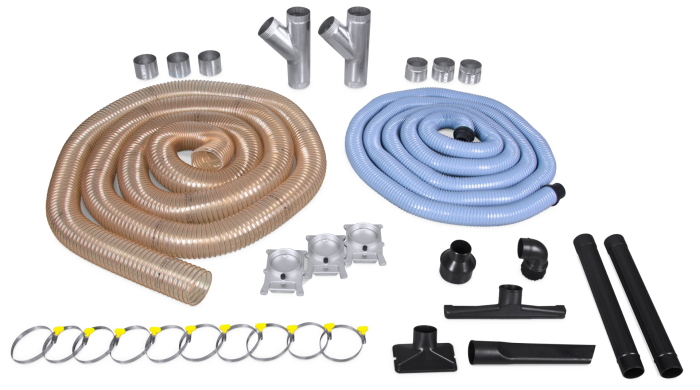

Kit Contents:

One 4" × 25' High-Pressure Flex Hose
Two 4" × 4" × 4" Crimped 45 Degree Wye Joints
Three 4" Blast Gates
Three 4" Male Duct Adapters
Three 4" Female Duct Adapters
Ten 4" Turn-Key Hose Clamps
One 2.5" × 25' Vacuum Hose
Vacuum Accessory Kit (4" to 2.5" Reducer, Gulper Tool, Floor Tool, Crevice Tool, Brush Head, Two Handle Extensions)

Important Note Regarding Compatibility:

This Ductwork Starter Kit is specifically designed for use with the Supercell High-Pressure Dust Collector product line. It is not intended for use with traditional low-pressure dust collectors.

Supercell Ducting Guide

Specs

More Information
SKU	DBK040000
Ductwork Type	Standard
Crimp Depth	2"
Shape	Round
Primary Build Materials	Galvanized Steel, ABS Plastic, Static Dissipative Polyethylene, PVC
Welding	Spot Welded
Static Resistance Rating	Static Bonded
Color	Silver
Contents	2x Pre-Crimped Wye Joints, 3x Blast Gates, 3x Male Blast Gate Adapters, 3x Female Blast Gate Adapters, 4" x 25' Flex Hose, 10x Turn-Key Hose Clamps, 2.5" x 25' Vacuum Hose, Vacuum Accessory Kit (Wand, Extension, Brush Tool, Crevice Tool, Floor Tool, and Wide Gulp Tool), 4" to 2.5" Reducer
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	N/A
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

How flexible is the heavy-duty, vacuum rated hose for the Supercell? What is the minimum bend radius?

The vacuum rated 4" hose, used for the Supercell strikes a balance between flexibility and durability. Because of the Supercell's intense vacuum pressure, some lesser hoses can be problematic or even dangerous since they can "pull" (tighten up like an accordion bellows) when subjected to vacuum pressure. Our vacuum rated hose will prevent this while still allowing the hose to flex. The hose can be bent into a tight radius, around 1-1.25X CLR of the diameter. So for 4" hose, one can achieve a centerline radius of around 4-5". See images. That said, this hose has a strong memory and is wire reinforced. It WILL NOT lie in place when aggressively bent and will try to spring back to a more linear shape if not held in place.
