8" LR Adjustable Elbow

Skip to the end of the images gallery

Skip to the beginning of the images gallery

DEA900800

8" LR Adjustable Elbow

$36.95

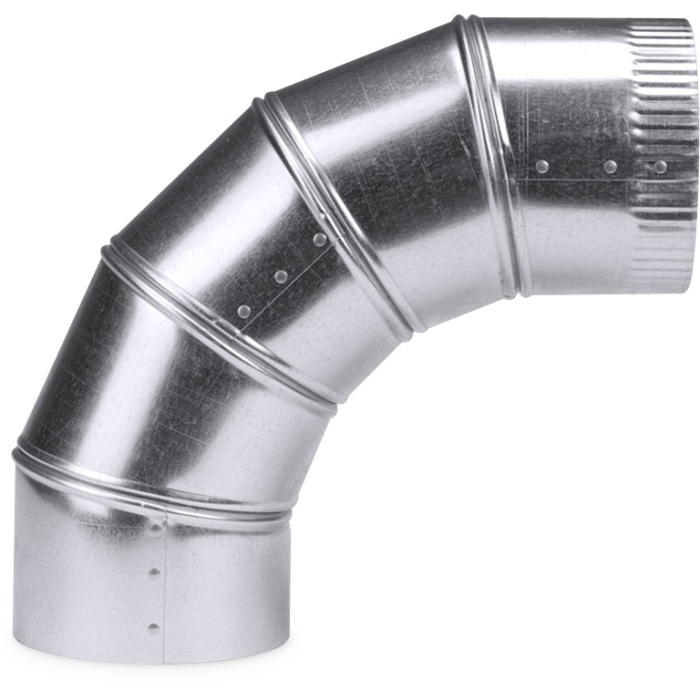

Made from separate gores (independently rotating sections) that adjust to form angles ranging from 0 to 90 degrees. The elbow is pre-crimped on one end for simple installation into existing piping.

Overview

This ductwork elbow is manufactured from heavy-duty galvanized steel as separate, independently rotating sections (called gores). This allows the elbow fitting to be adjusted to form any angle from 0 to 90 degrees. This fitting's large radius construction minimizes air resistance, making it ideal for dust collection applications.

The elbow is crimped on one end and raw (uncrimped) on the other to simplify installation into existing 8" I.D. ductwork. Crimps should be pointed in the direction of the airflow (i.e. towards the dust collector) for optimal performance. We recommend that the seams of the elbow gores be taped or caulked once the installation is finalized to eliminate any air leaks.

Please Note: Be sure to wear protective work gloves when handling sheet metal ducting as the edges can be very sharp.

Specs

More Information
SKU	DEA900800
Radial Size (R)	Adjustable (0-90 Degree)
Center-Line-Radius (CLR)	1.75 × Dia.
CLR Measurement	14.00"
Ductwork Type	Standard
Connection Type	Male / Female
Crimp Depth	1.25"
Shape	Round
Primary Build Materials	Galvanized Steel
Thickness	24 Gauge
Welding	Spot Welded
Static Resistance Rating	Conductive (Metal)
Color	Silver
Width	18"
Height	18"
Actual Weight (lbs)	3.6
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	N/A
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.
