AXD250010

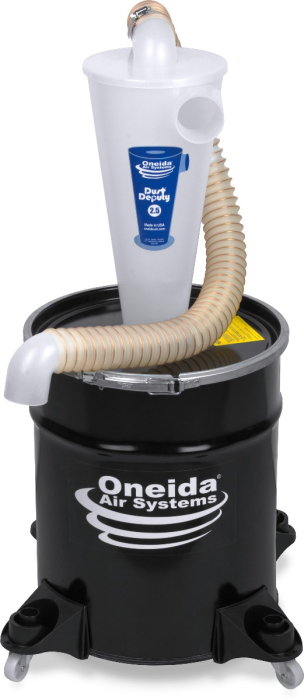

Dust Deputy 2.5 Deluxe 10 Gal. Cyclone Separator Kit
Special Price
$169.96
Regular Price
$199.95
Improved, high airflow, cyclone design stops up to 99.9% of fine dusts and bulk debris from clogging your vacuum's filter - eliminating suction loss while saving you time and money on expensive replacements! 10 Gal. Deluxe kit comes with everything you need for heavy dust loads!
- Up to 2x the airflow of smaller cyclones and lid-style separators.
- Upgrades any make/model shop vacuum with 2.5" hose fittings.
- Neutral-vane technology improves separation efficiency by 20%.
- Large 10-gallon steel drum contains heavy dust loads.
- Highly portable design with stable caster wheel base.
- Highly flexible, wire-reinforced, polyurethane vacuum hose with elbows.
- Anti-static components significantly reduce the likelihood of static shocks.
Products Recommended For You
Check items to add to the cart or
New & Improved High Airflow Design for Larger Shop Vacuums
A dust-free tool is an efficient tool, but not every shop can fit (or afford) a full-sized dust control system. That's why shop vacuums have always been the first choice that craftsmen and DIYers use for dust collection. And bigger tools mean bigger messes – and bigger vacuums to clean them!
The Dust Deputy® 2.5 Cyclone Separator is Oneida Air Systems' latest innovation for woodworkers and other makers in need of an effective and affordable dust control solution. Optimized for the more powerful wet/dry vacuums that have become standard over the years, this larger cyclone delivers up to double the airflow of smaller cyclones and lid-style separators!
Like all of our patented Dust Deputy cyclones, the 2.5 uses centrifugal force to separate and remove up to 99.9% of dust and debris from the airstream before it reaches your vacuum's filter – eliminating clogged filters and suction loss! The Dust Deputy will save you significant time and money on expensive replacement filters and dust bags, and keeps your wet/dry vac operating at peak performance! This simple and efficient design can be adapted for use with any make, size, or model vacuum and features female inlet and outlet ports that fit the cuffed 2.5" hoses of larger shop vacuums.
What's Included:
- Anti-Static Dust Deputy Cyclone Pre-Separator
- Steel 10-gallon Dust Bin w/ Locking Lever Clamp
- Steel Drum Dolly w/ Free-Rotating Caster Wheels
- 2" × 3' Wire-Reinforced Vacuum Connection Hose
- 2x Tapered Hose Elbow Adapters
- Pre-cut Neoprene Foam Gasket
Works With Nearly Any Type of Material:
- Wood Dust
- Drywall Dust
- Concrete Dust
- Clay/Silica Dust
- Blasting Soda
- Cooled Ash & Soot
- Metal Shavings
- Baking Flour
- Grass & Leaves
- Pet/Animal Hair
- Pharmaceutical Waste
- Water & Non-Viscous Liquids
- Even Water!
High Airflow Design
The larger cyclone better accommodates more powerful wet/dry vacuums, delivering up to twice the airflow and significantly reducing pressure drop compared to other cyclone and lid-style separators.
Neutral-Vane Inlet
Directs the inbound airstream down into the cyclone and prevents swirling dust-laden air from creating turbulence at the inlet; Improving overall separation performance by over 20% compared to cyclones without this feature.
Plug & Play Hose Connections
Female inlet and outlet ports (2.25" I.D.) readily accept the 2.5" cuffed hose fittings standard with shop vacuums commonly used for dust collection.
Anti-Static Materials
Manufactured from special materials that help safely convey the build-up of static electricity (common in any high friction environment such as dust collection) to prevent harmful discharges and annoying static cling.
Proudly Made in the USA
Designed, tested, and manufactured right here in the United States of America: Made by Craftsmen, for Craftsmen™. We fully stand by the quality of every one of our products and our friendly team of dust collection experts are here for you.
| SKU | AXD250010 |
|---|---|
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Waste Capacity | 10 Gallons |
| Inlet Size | Nominal: 2.25" I.D. / 2.5" O.D. Actual: Tapered 2.31" to 2.29" I.D. |
| Outlet Size | Nominal: 2.25" I.D. Actual: Tapered 2.31" to 2.29" I.D. |
| Discharge Size | 3" I.D. |
| Primary Build Materials | Steel, Polypropylene |
| Thickness | 22 Gauge (Drum Body) |
| Static Resistance Rating | Anti-Static |
| Color | Translucent |
| Width | 19" |
| Height | 34-1/4" |
| Height to Center of Inlet | 32 -7/16" |
| Actual Weight (lbs) | 22.00 |
| Product Compatibility | Wet/Dry Vacuums with 2.5" hoses and inlets |
| Contents | Cyclone Separator, Pre-Cut Drum Lid, Lid Clamp, Drum Dolly, Caster Wheels, Hose, 2x Hose Elbows, Conductive Tape, Gasket, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 1 Year Limited Warranty |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
