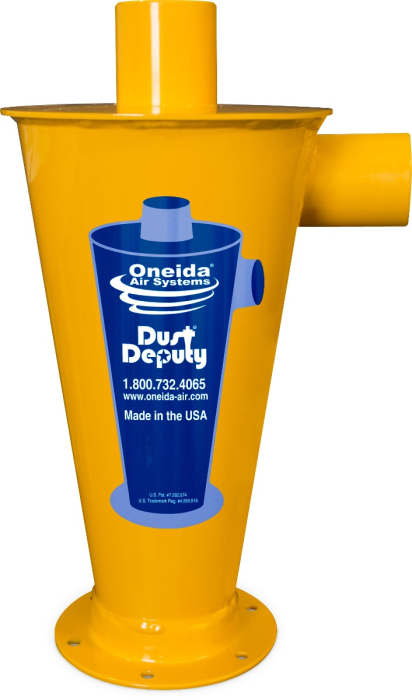

Heavy-Duty 2" Cold Rolled Steel Dust Deputy DIY Cyclone Separator

Build Your Own Industrial Cyclonic Vacuum System

Tired of using your shop vacuum for sanding and getting poor results? Oneida's patented Industrial Steel Dust Deputy will transform your wet/dry vacuum! Attach the Dust Deputy and sand for hours without worrying about your filter clogging or experiencing loss of suction!

The heavy-duty cyclone's seam-welded construction and power-coat finish ensure that it lasts through even the toughest applications. With its 2" diameter inlet and outlet (and included adapter) you'll be able to use the Dust Deputy with any type of wet/dry shop vacuum.

The unique design of the cyclone removes up 99.9% of dust from the air stream and deposits it below; stopping the dust before it ever reaches the filter! You'll enjoy longer filter life and faster workflow with the help of the Dust Deputy (also available in a molded, anti-static resin model)

With the DIY cyclone, your Dust Deputy system is limited only by your imagination! It can be used with any size or shape container; as long as it's air-tight, you're good to go!

Click the Documents tab above to download a printable lid hole template.

Specs

More Information
SKU	AXD001002
Cyclonic Separation Efficiency	Removes over 90% of concrete dusts
Airflow Rating	Minimum 50 CFM
Waste Capacity	Customizable
Inlet Size	2" O.D. 1-7/8" I.D.
Outlet Size	2" O.D. 1-7/8" I.D.
Discharge Size	5" O.D. 3" I.D.
Primary Build Materials	Cold Rolled Steel
Thickness	20 Gauge
Welding	Spot Welded
Static Resistance Rating	Conductive (Metal)
Color	Yellow
Width	6.75"
Depth	8"
Height	13.5"
Height to Center of Inlet	9.75"
Actual Weight (lbs)	7
Contents	Cyclone Separator, Flange Gasket, Hose Adapter, Hose Coupler, Mounting Hardware
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	1 Year Limited Warranty
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

What vacuum do you recommend for the Dust Deputy?

The Dust Deputy can be used with any make, model, or size wet/dry vacuum with an inlet ranging from 1.5" to 2.5" in size. We recommend that it has an airflow rating of at least 50 CFM to ensure optimum dust separation performance.

Does the Steel Dust Deputy have tapered inlets like your resin models?

No. The Steel Dust Deputy has straight 2" inlet and outlet ports. A 2.25" Hose Adapter and Hose Coupler are included with the steel Deluxe and DIY kits to simplify hose connections for customers.

What is the weight of the steel cyclone itself?

Approximately 5 pounds. The exact weight may vary due to slight variances in the manufacturing process.

What type of dust bin works best?

You can use any shape or size container for your Dust Deputy cyclone. Keep in mind that the smaller the container, the more often you'll have to empty it. The dust container you provide must be able to be sealed airtight for the best performance. Foam gaskets or silicone caulk can help provide an airtight seal. Containers must also be strong enough to withstand the pressure created by your vacuum. For plastic buckets, we recommend at least a 90 mil. wall thickness; otherwise, the container may collapse when in use. Browse Dust Containers

How does the Low-Pro compare to the taller cyclones?

The separation efficiency is comparable between the Low-Pro and original Dust Deputy - both are rated for up to 99.9% of dust and debris. Click "Read More" to learn more about the differences between the Dust Deputy cyclones.

Will the Dust Deputy cyclone work if my tool has its own fan blower?

In most cases, yes - but the cyclone's efficiency will vary based on whether your vacuum is also turned on. The Dust Deputy cyclone needs a consistent airflow rate to "spin" the dust out of the airstream; If your tool's fan blower is pushing air in while your vacuum is also sucking air out, this can disrupt the airflow rate and reduce the cyclone's separation performance. In many cases, the fan blower on tools (such as planers) cannot be turned off. If that is the case for you, try collecting your dust with the vacuum turned off. In doing so you will be creating a positive pressure system as the tool's fan blower pushes air through the Dust Deputy cyclone. This method may not work with every vacuum

Why should I choose the metal version of your Dust Deputy cyclone?

Our steel Dust Deputy models are built for the toughest applications. If you're going to be sucking up large amounts of highly abrasive materials such as metals and gravel, the heavy-gauge cold-rolled steel cyclone will perform better and longer than our injection molded models. It's also ideal if you're expecting to suck up high-temperature materials such as hot coals and ash.

How do I troubleshoot an air leak with my Dust Deputy cyclone?

Even a small leak can significantly affect the overall separation performance of the cyclone. If you can't audibly pinpoint where the leak might be coming from, one of the simplest ways to check for air leaks is with a smoke test. Click "Read More" for further instructions and tips.

Can I use this steel cyclone with smoldering or abrasive debris?

Yes, absolutely. This cyclone is built with heavy-gauge, powder coated steel for industrial applications collecting highly abrasive or smoldering materials e.g. hot ash/soot, blasting powders, concrete, grinding dust, etc. Please note that you should also ensure that your vacuum/dust collector is rated to accept these same types of materials i.e. do not collect hot/smoldering materials if your vacuum isn't normally capable of collecting this type of waste.

Do your steel cyclones have the same separation performance as your resin models?

Yes our steel cyclones offer the same separation performance as our molded resin cyclones.

Is the steel cyclone rust-proof?

In short, no. The steel cyclone has a powder-coat finish, ensuring that it's durable and rust resistant, but if you expect to have your cyclone exposed to water on a regular basis (e.g. exposed to harsh weather, submerged in water, etc.) we recommend you find additional covering to prevent corrosion over time.

What are the minimum specs needed for the Dust Deputy?

Rather than worrying about what specs your vacuum needs (e.g. air watts, cfm, static lift, etc.), we at Oneida Air Systems have a much simpler approach - simply match the size of your vacuum's inlet to the size of the Dust Deputy cyclone's ports. The Dust Deputy cyclone's tapered 2" ports are designed to work with any make and model wet/dry vacuum on the market today, regardless of horsepower, wattage, etc. Most vacuums will have an inlet ranging from 1.5" to 2.5" in diameter - perfect for our cyclone. Keep in mind that every component installed onto your vacuum will have an effect on the system's suction power. That includes your hose, hose attachments, adapters, elbows, couplers, etc.
