BSK

Transfer Blower Kit

Only %1 left

As low as $3,195.00

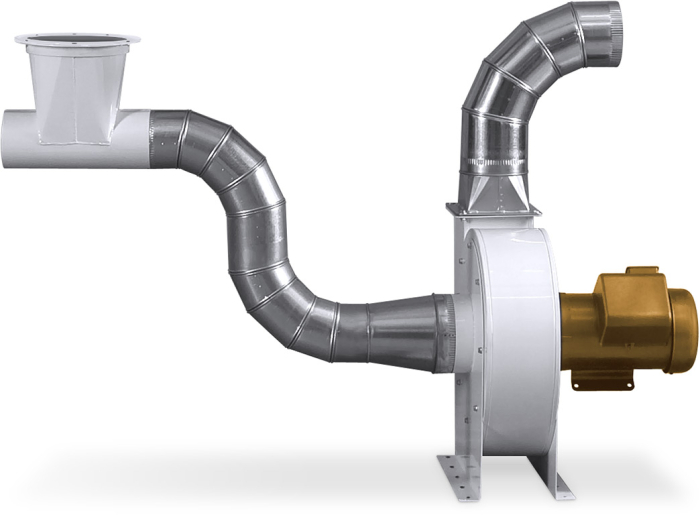

Pneumatic conveyance system for use with rotary feeder valves to transfer bulk waste away from the dust collector. This allows dust and debris to be fed to a remote location of your choosing (e.g. tilt truck, hopper, truck, etc.) - ideal for large commercial shops producing continuous waste. Blower system features an industrial, 230V U.S. motor and a variety of fittings for connecting the air lock's 10" discharge flange to 8" dia. rigid, steel ducting.

Overview

Bulk Handling for Dust and Debris

Ideal for commercial applications that produce high volumes of dust, Oneida Air Systems' transfer blower systems are great for conveying dust away from the primary dust collection system to be deposited in a large, remote container for disposal (e.g. trailer, hopper, dumpster, truck bed, etc.). Conveying the dust to a remote location is far more cost effective than continuously emptying 55 gallon containers and saves your shop significant time and money in labor costs.

Recommended installation is connected to our Rotary Air Lock Valves to preserve airflow performance within the dust control system. This kit includes heavy-gauge steel ductwork components to connect to your air lock's flanged opening - combine with 7" dia. straight piping (sold separately) based on your shop's needs.

Benefits & Features

High-efficiency industrial U.S. motor, choice of 1-phase or 3-phase model.
Includes magnetic starter and overload protector
Industrial blower construction with full welds and heavy gauge steel with powder-coated finish.
Blower can be surface mounted with an outlet orientation that rotates at 45 degree increments.
Backward inclined fan wheel made from cast-aluminum alloy.

Rotary air lock valve and straight pipe fittings not included with this kit and are shown only as an illustration.

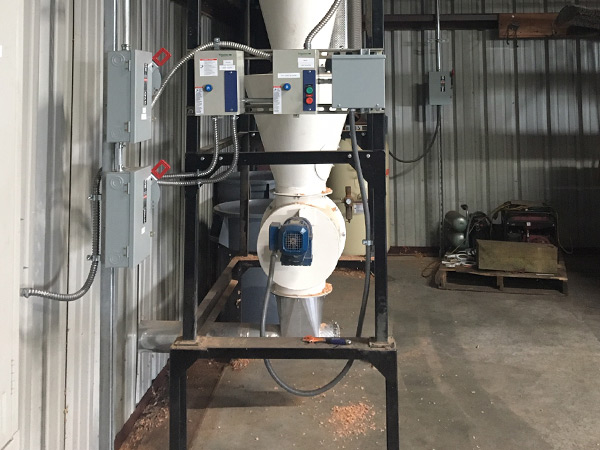

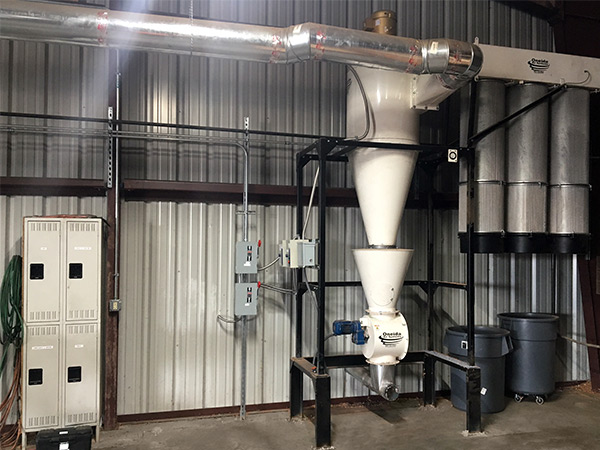

10HP Cyclone Dust Collector installed with an expansion chamber, air lock valve, and blow through adapter.

The blow through adapter fitting allows for a high volume of air to move away from the air lock valve.

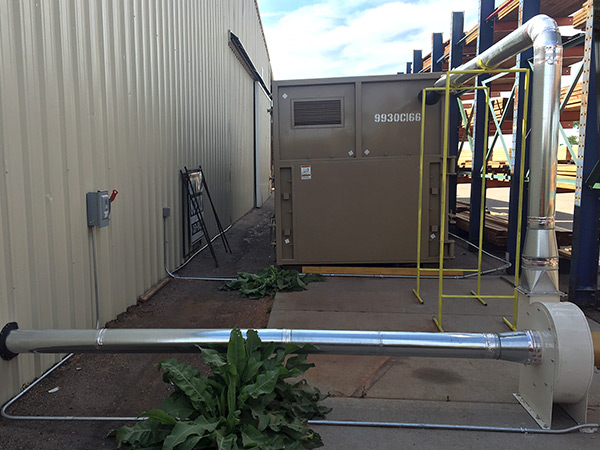

The transfer blower installed outside conveys the air from the dust collector to the remote container.

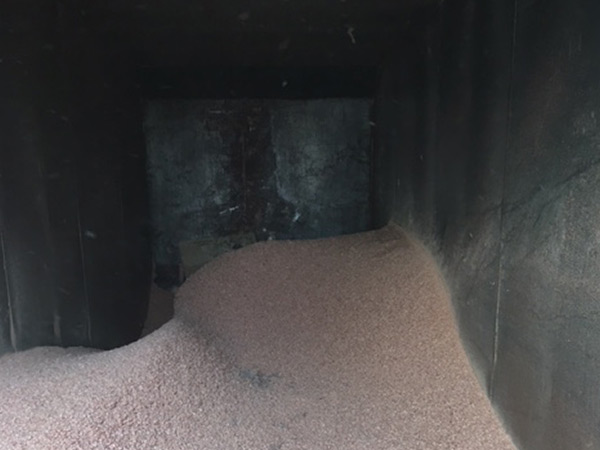

Dust is deposited in a large, ventilated trailer for later disposal.

Specs

More Information
SKU	BSK
Motor Type	U.S. Baldor® TEFC Motor
Motor Service Factor	1.15
Voltage	220-240V, 208-230V
Recommended Breaker Size	30A
Amperage (Typical)	1-phase: 19.5A 3-phase: 12.8-11.6A
Frequency	60Hz
Power Connector Type	Choose model to see specification
Power Cord Length	10 feet
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous, cast aluminum alloy.
Impeller Size	15" Dia.
Real CFM Rating	1,950 Actual CFM
Motor Speed Type	Fixed
Waste Capacity	Customizable
Remote Control	Call for Info
Remote Control Part #	1-phase only: Item #AXR220000
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	White
Inlet Size	10" Flange 8" Dia. (at Blower)
Outlet Size	10" x 8" Flange 8" Dia. (w/ Adapter)
Width	26" (Blower only)
Depth	23" (Blower only)
Height	27" (Blower only)
Contents	Blower Motor Assembly, Fan Housing, Magnetic Starter (5HP only), Blow-Through Adapter, 3x Adjustable Elbows, Long-Taper Reducer, Square-to-Round Adapter, Male Pipe Adapter
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	1 Year Limited Warranty
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

How is the filter cleaned if it doesn't have the typical hand crank?

The use of hand cranks that "beat" the filter can damage the filter's pleating material overtime, so our systems are not built with such mechanisms. Click "Read More" to read about recommended filter cleaning techniques.

What do I need to know about NFPA regulations?

Fire protection regulations are a complex and ever-changing set of rules that differ from facility to facility. However, all of Oneida Air Systems' dust collector are NFPA Compliance Ready and we provide best practices and guidance for assisting customers - read our NFPA Reference Guide for more information.

Is it normal for my dust collector to run hot?

Yes. All motors generate heat, which is why it is essential to have proper ventilation around the motor for cooling.
