XGK05

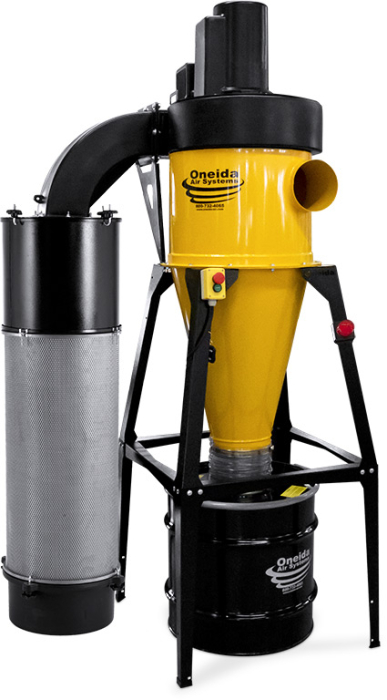

5hp Dust Gorilla Pro SMART Boost HEPA-GFM Cyclone Dust Collector
Only %1 left
As low as
$4,449.00
- Patented SMART Boost® doubles airflow performance through smaller ports and long ducting runs. Ideal for CNC machines!
- Industrial 230V U.S. made fan motor provides ample CFM for up to 3 tools at once. Includes RF remote control starter.
- High efficiency cyclone separator (removes over 99% of fine wood dust) made from heavy gauge, powder-coated steel.
- Reinforced steel dust bin with quick-release lid and automatic fill level indicator.
- HEPA-grade media filter with non-stick membrane for easy cleaning.
Products Recommended For You
Check items to add to the cart or
Introducing: The Last Dust Collector You'll Ever Need - Now With Twice The Airflow!
Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems' patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout!
Traditional dust collector fan motors operate at a fixed speed (RPM). When long ducting runs, smaller tool ports, and even closed gates limit the volume of air (CFM) the fan can move at its fixed speed, the motor ends up doing less work – and draws fewer amps. Our unique SMART Boost technology ensures the motor is always working at full capacity (with a constant amp draw) by increasing fan speed as needed to deliver maximum CFM and maximum suction at all times – up to double the CFM and suction of traditional, fixed RPM dust collectors. It can even adjust for differences in air density to optimize static pressure and CFM in high-altitude locations. Truly revolutionary!
Combining the award-winning features of our Super Dust Gorilla with the rugged construction of our Pro series, this new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.
Included Features & Components
- Industrial 5HP U.S. Made Fan Blower Motor
- SMART Boost Variable Speed Airflow Controller
- Wireless Radio Frequency Remote Control Keyfob
- Heavy-Gauge Seam Welded Steel Cyclone Separator
- HEPA-Grade Filter Media
- Stacking Sound Filter & Drop-in Silencer
- Steel Angle Frame Stand or Wall Mounting Bracket
- Reinforced Steel Dust Bin
- Dust Sentry® Bin Fill Level Indicator
- 2 Year Limited Warranty
- cETLus Certified and NFPA Compliance Ready
I have an 8" jointer, a 20" planer, and a 5HP tablesaw all wired into the shop and having designated dust collection really improves the use of those machines. Removing material at the source is huge for keeping the longevity of your cutter heads as well as making sure your blades are used as efficiently as possible … SUPER excited to have this in my shop - it's already drastically improved my workflow. Read more »
John Malecki, former Pittsburgh Steeler and owner of METAL & WOOD Custom Furniture
Continuously High Airflow Performance
Our patented SMART Boost technology directly measures resistance placed on the fan motor and automatically increases the fan's speed to compensate when suction is low, ensuring that the motor always works at peak performance levels! This can double your airflow through smaller or mixed ports - perfect for CNC machines!
- High-efficiency, U.S. made fan blower motor
- Industrial-grade brushless motor designed for continuous duty
- Delivers ample airflow for collecting from up to 3 machines at once.
- Low pitch noise level provides ideal operator comfort
- Includes RF remote control that works through walls and up to 100 feet away.
- System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.
Ultra-High Efficiency Steel Cyclone Separator
Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.
- Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
- Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
- 7" dia. neutral-vane inlet for use with common 6" ductwork layouts (reducers available).
- Industrial 16 gauge steel construction with full welded, airtight seams.
- Oneida Air Systems' trademark gold, rust preventative, powder coat finish.
High Quality & Serviceable Filtration
The Dust Gorilla Pro system uses HEPA-grade media cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance. Read more about The Advantages of Oneida Air Systems' HEPA-Grade Media Filters »
- We fully stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
- Stacking Sound Filter and internal silencer reduce overall noise output of the system by up to 6 dBA.
- Patented Flame Guard safety mesh rapidly dissipate any heat generated by a deflagration within your filter, helping to comply with future planned NFPA fire safety codes.
- Wide-spaced filter pleating coated with non-stick PTFE membrane to facilitate east cleaning.
- Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.

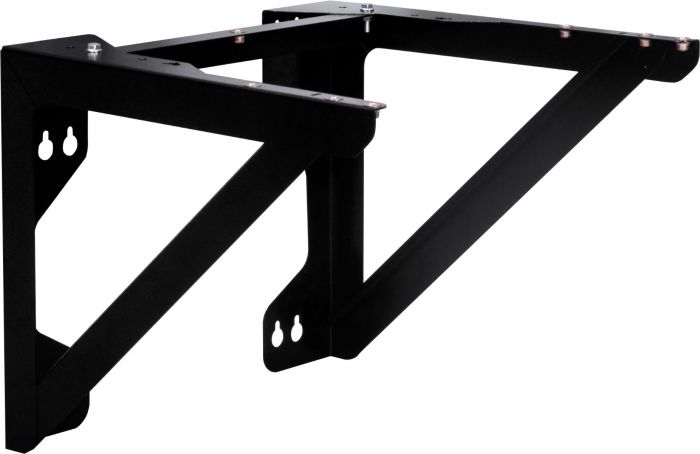

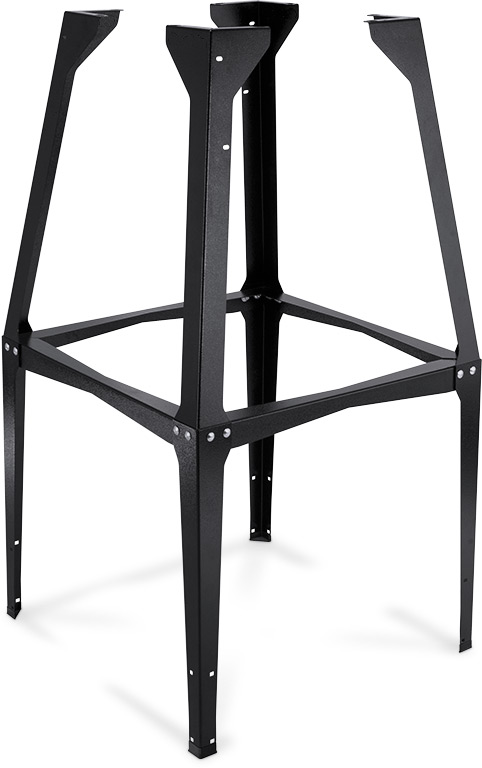

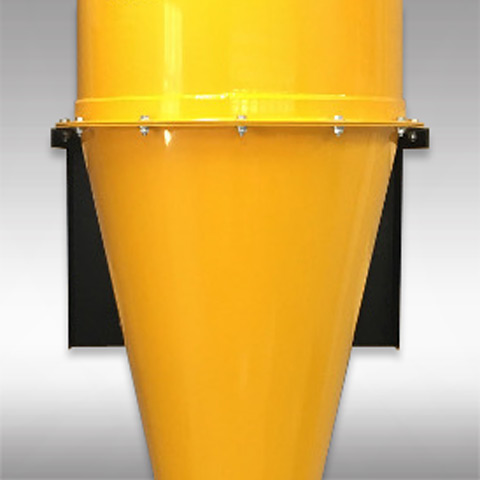

Compact, Configurable Mounting Options
This unit can be equipped with your choice of wall bracket or freestanding leg kit to best suit your shop's floor plan. Both options are highly compact and support various rotations of the cyclone body to best position the inlet. Our mounting systems are built from heavy-gauge, powder coated steel for long lasting durability and are delivered flat packed with easy assembly.
Please Note: The Leg Extension Kit is required if you wish to use a drum dolly with the 35-Gallon model of the stand. See product documentation for more details.

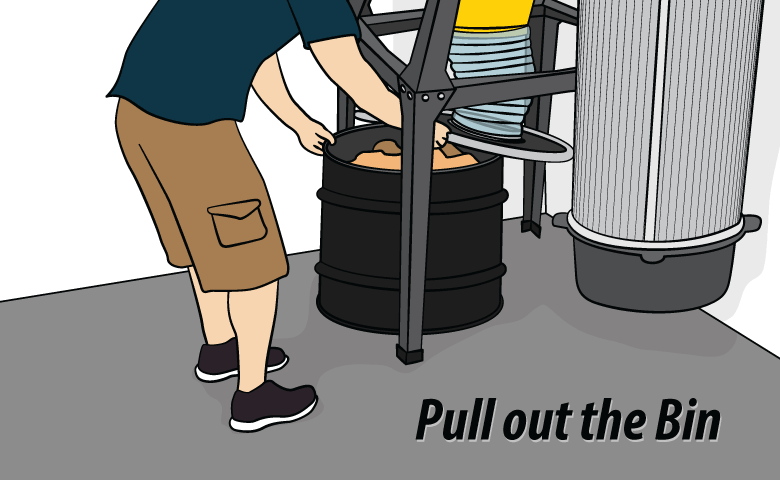

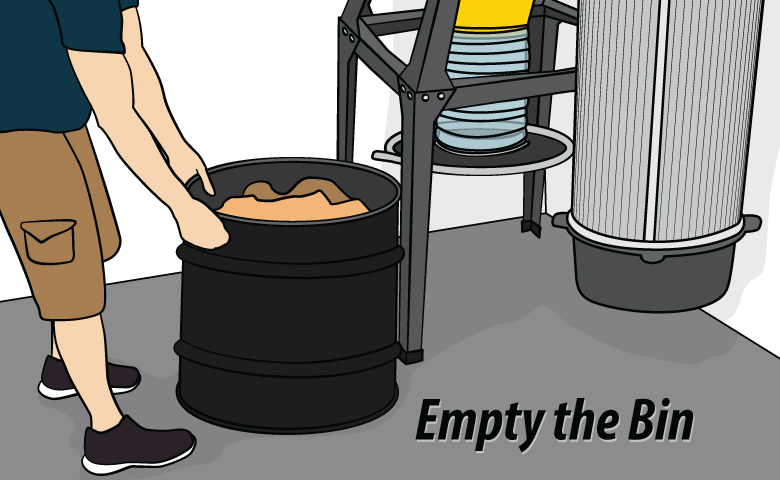

Convenient Pull-Out Dust Bin
Our dust collection bins are made simple for a reason: convenience. With no assembly required, these robust, steel drums are quick and easy to use when disposing of dust and debris. The dust collector comes with your choice of 35 or 55 gallon drum - choose the size that best fits your workflow but bear in mind the weight of a full drum when emptying! Drum dollies and bag holding sleeves are also available to make emptying the drum cleaner and more efficient.
| SKU | XGK05 |
|---|---|
| Horsepower | 5 hp |
| Motor Type | U.S. Motor |
| Motor Service Factor | 1.15 |
| Voltage | 220-240V, 208-230V |
| Recommended Breaker Size | 30A |
| Amperage (Typical) | 1ph: 18-23A 3ph: 15A |
| Frequency | 60Hz |
| Power Connector Type | Choose model to see specification |
| Power Cord Length | 7 feet |
| Impeller Type | Single-piece, backward inclined, non-sparking/non-ferrous |
| Impeller Size | 15" Dia. |
| Real CFM Rating | 1,395 Actual CFM at 1.9" WC |
| Free Fan CFM Rating | 3,250 CFM |
| Maximum Suction | 23" WC |
| Max. Open Blast Gates | 3 Gates |
| Noise Level | 75-87 dBA at 10 ft |
| Motor Speed Type | Variable |
| Cyclonic Separation Efficiency | Removes over 99% of fine wood dusts |
| Filter Type | HEPA Grade ePTFE Media |
| Filtration Efficiency | E12 Minimum Efficiency Rating |
| Total Filtration Area | 110 sq ft |
| Replacement Filter | #FCS183600HF |
| Waste Capacity | 35 Gallons, 55 Gallons |
| Remote Control | Included |
| Remote Control Part # | See Item #AMR000000 for additional or replacement keyfobs. |
| Primary Build Materials | Cold Rolled Steel |
| Welding | Seam Welded |
| Static Resistance Rating | Conductive (Metal) |
| Color | Yellow |
| Inlet Size | 7" Dia. |
| Outlet Size | Square ID: 7-3/8"(W) x 6-3/8"(H) |
| Discharge Size | 9" Dia. |
| Width | 48" |
| Depth | 30" |
| Height | 94" w/ 35 Gal. Model 106" w/ 55 Gal. Model |
| Height to Center of Inlet | 66.5" w/ 35 Gal. Model 78.5" w/ 55 Gal. Model |
| Contents | Blower Motor Assembly, Magnetic Starter, SMART Boost Controller, Fan Housing, Cyclone Separator, Filter Plenum, Stacking Sound Filter, FlameGuard Cartridge Filter, Freestanding Leg Kit, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardware |
| Manufacturer | Oneida Air Systems |
| Manufacturer Statement | Made in USA |
| Warranty Information | 2 Year Limited Warranty |
| Certifications | NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards. |
| Proposition 65 | WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm. |
