Supercell High-Pressure 30 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector

Unbeatable Suction Power

What makes the Supercell unique is its incredibly high static pressure rating - 10x higher than standard dust collectors - making it the only system that collects from a 5" port just as well as a 1" port.

As air moves through ductwork it's met with resistance from the other air molecules and walls around it. Every length, turn, split, and reduction increases this pressure buildup and restricts how much air can move through the pipe at once, leaving dust on the tool. Standard collectors try to compensate for this by increasing the total air volume (CFM), but like adding more lanes to a highway, only so many cars can move off the exit ramp at once.

The Supercell's solution is to speed up the cars! Powered by multiple high-pressure fan motors working in sync, the Supercell's high suction creates an intense vacuum system that moves the dust-laden air at a relentless pace, overcoming the resistance through up to 100 feet of 4" hose and ductwork!

Simplified Duct Design & Installation

Thanks to the unbeatable suction pressure of the Supercell, gone are the days of carefully planning, compromising, and budgeting for the most optimal ductwork design. The Supercell readily overcomes ductwork layouts that would stifle traditional low-pressure dust collectors. Hook up what you want, where you want it!*

For more information and some examples of simplified duct designs, read our Supercell Duct Guide. Also be sure to check out our Supercell Ductwork Kit to get everything you need in one convenient, modular package!

* Components should be electrically grounded and vacuum-pressure rated to avoid static discharges and collapsing. Blast gates should be used to close off airflow to unused branches.

High-Efficiency Steel Cyclone Separator

The Supercell features a long-tapered body that uses cyclonic force to remove over 99% of fine wood dusts from the airstream, containing it in an easy-to-empty 14-gallon drum beneath the cone.

Integrated Pulse Filter Cleaner

There are few tasks worse than dealing with a clogged filter; cleaning them can be messy and time consuming, and it's often the only way to quickly restore suction. With the Supercell's internal pulse cleaner, you never have to worry about downtime or dust clouds while cleaning your filter!

A few quick taps on the pulse bar temporarily reverses the system's airflow, blasting dust off of the filter and safely into the drum below. Unlike traditional collectors that use a mechanical paddle to "beat" the filter, the pulse cleaner does not damage the filter's microfibers or compromise the filtration efficiency.

High Quality & Serviceable Filtration

The Supercell uses HEPA-Grade Filter Media specifically designed for dust collection applications, providing unbeatable airflow and filtration performance. Read more about the advantages of Oneida Air Systems' HEPA-Grade Media Filters

Automatic Bag Holder System

Waste disposal is made fast and simple thanks to the Supercell's automatic bag holder that uses negative pressure to hold disposable plastic liner bags open inside the drum. When you know the drum is full (thanks to the built-in dust level sensor), simply remove the lid, tie off the bag, and lift it out - no more carrying and dumping out large, heavy containers!

Automatic Dust Bin Level Sensor

Oneida Air Systems' patented Dust Sentry® takes the guesswork out of using your vacuum! This adjustable optical sensor detects when the drum has been filled to a pre-set level and flashes a high visibility strobe light to alert you when it's time to empty.

Capable of detecting nearly any type of wet/dry material, the Dust Sentry will significantly streamline your workflow and put you back in control of how long you can keep working.

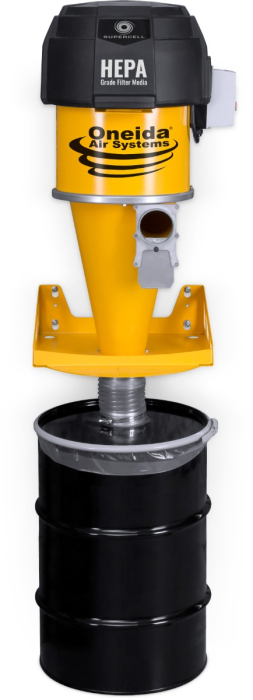

Compact & Adaptable Wall Mounted Design

Includes a heavy-gauge steel wall mounting bracket with convenient keyholes (hardware not included) to install nearly anywhere in the shop. The two halves of the cyclone (separated by a steel ring) can be independently rotated at 90 degree increments to suit your needs (i.e., the inlet can be turned to face left, forward, or right while the pulse bar and control box can be turned separately).
