5hp 1ph Dust Gorilla Pro SMART Boost 55 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector

Skip to the beginning of the images gallery

XGK050055W

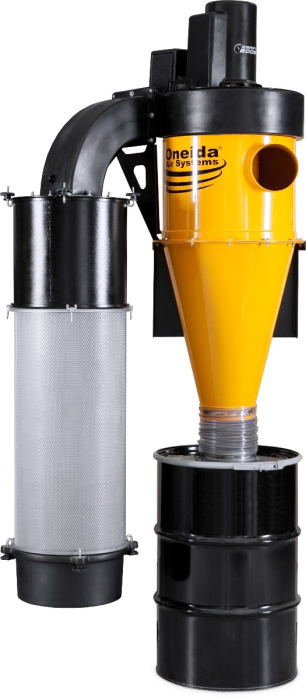

5hp 1ph Dust Gorilla Pro SMART Boost 55 Gal. Wall-Mounted HEPA-GFM Cyclone Dust Collector

$4,449.00

Patented SMART Boost® doubles airflow performance through smaller ports and long ducting runs. Ideal for CNC machines!
Industrial 230V U.S. made fan motor provides ample CFM for up to 3 tools at once. Includes RF remote control starter.
High efficiency cyclone separator (removes over 99% of fine wood dust) made from heavy gauge, powder-coated steel.
55 gallon dust bin with quick-release lid and automatic fill level indicator.
HEPA-grade media filter with non-stick membrane for easy cleaning.

Introducing: The Last Dust Collector You'll Ever Need - Now With Twice The Airflow!

Choosing the best dust collector for your shop can be difficult, especially when you start combining mixed/undersized dust port and long runs of ducting or hoses. Oneida Air Systems' patented SMART Boost® technology offers the only solution that can adapt to nearly any shop layout!

Traditional dust collector fan motors operate at a fixed speed (RPM). When long ducting runs, smaller tool ports, and even closed gates limit the volume of air (CFM) the fan can move at its fixed speed, the motor ends up doing less work – and draws fewer amps. Our unique SMART Boost technology ensures the motor is always working at full capacity (with a constant amp draw) by increasing fan speed as needed to deliver maximum CFM and maximum suction at all times – up to double the CFM and suction of traditional, fixed RPM dust collectors. It can even adjust for differences in air density to optimize static pressure and CFM in high-altitude locations. Truly revolutionary!

Combining the award-winning features of our Super Dust Gorilla with the rugged construction of our Pro series, this new system will help you maximize your investment and ensure that your shop is running at peak-efficiency for years to come.

Included Features & Components

Industrial 5HP U.S. Made Fan Blower Motor
SMART Boost Variable Speed Airflow Controller
Wireless Radio Frequency Remote Control Keyfob
Heavy-Gauge Seam Welded Steel Cyclone Separator
HEPA-Grade Filter Media
Stacking Sound Filter & Drop-in Silencer
Steel Wall Mounting Bracket
55 Gallon Reinforced Steel Dust Bin
Dust Sentry® Bin Fill Level Indicator
2 Year Limited Warranty
cETLus Certified and NFPA Compliance Ready

I have an 8" jointer, a 20" planer, and a 5HP tablesaw all wired into the shop and having designated dust collection really improves the use of those machines. Removing material at the source is huge for keeping the longevity of your cutter heads as well as making sure your blades are used as efficiently as possible … SUPER excited to have this in my shop - it's already drastically improved my workflow. Read more »
John Malecki, former Pittsburgh Steeler and owner of METAL & WOOD Custom Furniture

Oneida Air Systems' dust collectors are designed and tested for woodworking applications. While they can also be functional for other applications and materials, customers that use our collectors – in all cases, even with wood dust – must do so with the understanding that they take responsibility to ensure proper safety and compliance within their facility and that they follow prescribed Federal, State, Local, OSHA, NFPA, and any other applicable codes or regulations relating to the materials they are collecting. If unsure, customers should consult with their local experts and Authorities Having Jurisdiction (AHJ). We strongly recommend reviewing this product's Owner's Manual and our Product Safety Webpage for more information prior to ordering.

5HP Dust Gorilla Pro Fan Rating — OAS uses Actual CFM Ratings that reflect real-world airflow performance.

Continuously High Airflow Performance

Our patented SMART Boost technology directly measures resistance placed on the fan motor and automatically increases the fan's speed to compensate when suction is low, ensuring that the motor always works at peak performance levels! This can double your airflow through smaller or mixed ports - perfect for CNC machines!

High-efficiency fan blower motor - Made in USA
Industrial-grade brushless motor designed for continuous duty
Delivers ample airflow for collecting from up to 3 machines at once.
Low pitch noise level provides ideal operator comfort
Includes RF remote control that works through walls and up to 100 feet away.
System's inlet and outlet rotate independently at 45 degree increments to suit your shop's needs.

Ultra-High Efficiency Steel Cyclone Separator

Features Oneida Air Systems' unique long-tapered cyclone design that provides maximum pre-separation efficiency compared to the squatter cyclone designs of competitors.

Virtually eliminates filter clogging and suction loss to provide continuous suction performance.
Significantly extends the lifespan of the filter and reduces downtime needed for cleaning.
7" dia. neutral-vane inlet for use with common 6" ductwork layouts (reducers available).
Industrial 16 gauge steel construction with full welded, airtight seams.
Oneida Air Systems' trademark gold, rust preventative, powder coat finish.

Large HEPA-Grade Media Cartridge Filter and Plenum

High Quality & Serviceable Filtration

The Dust Gorilla Pro system uses HEPA-grade media cartridge filters that are specifically designed for dust collection applications - providing unbeatable airflow and filtration performance. Read more about The Advantages of Oneida Air Systems' HEPA-Grade Media Filters »

We fully stand by the quality and performance of our filters; each filter is sent to an accredited independent testing lab. Contact us for more information and documentation.
Stacking Sound Filter and internal silencer reduce overall noise output of the system by up to 6 dBA.
Patented Flame Guard safety mesh rapidly dissipate any heat generated by a deflagration within your filter, helping to comply with future planned NFPA fire safety codes.
Wide-spaced filter pleating coated with non-stick PTFE membrane to facilitate east cleaning.
Fine dust pan captures residual dust that falls off the inside of the filter. Can be removed easily for cleaning after reverse blowing compressed air into the pleats.

Compact, Configurable Mounting System

This dust collector comes equipped with a Wall Mounting Bracket; perfect for applications where the system needs a custom mounting height or where floor space needs to be conserved. Built from heavy-gauge, powder coated steel for long lasting durability and delivered flat packed for easy assembly.

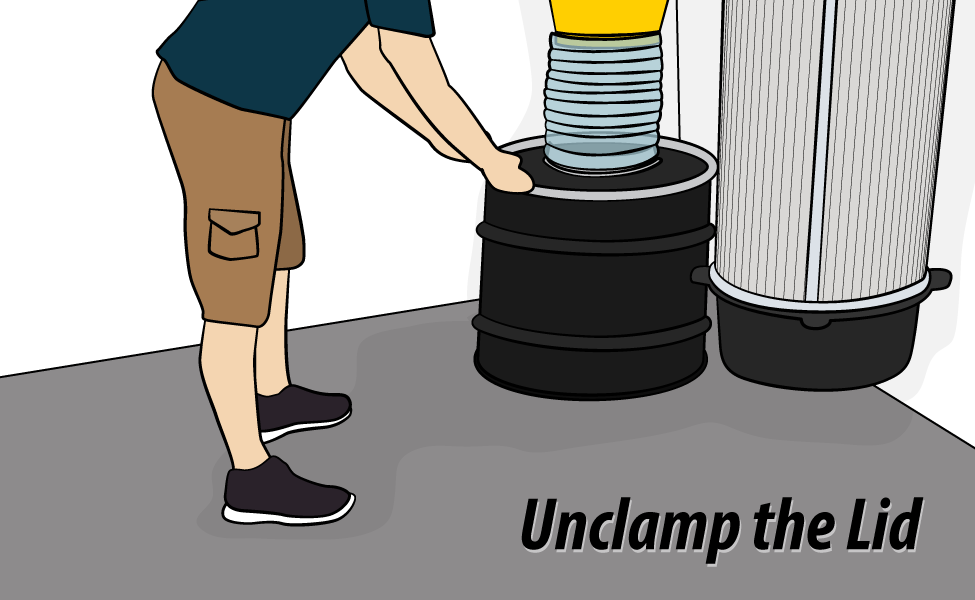

Release the dust bin's locking lever clamp and lift off the lid.

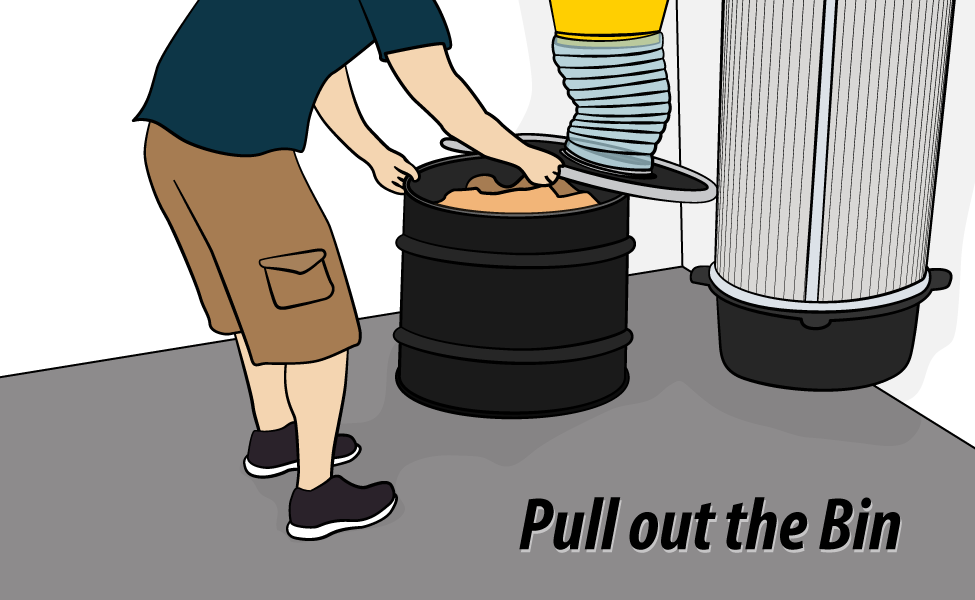

Pull the dust bin out from under the cyclone.

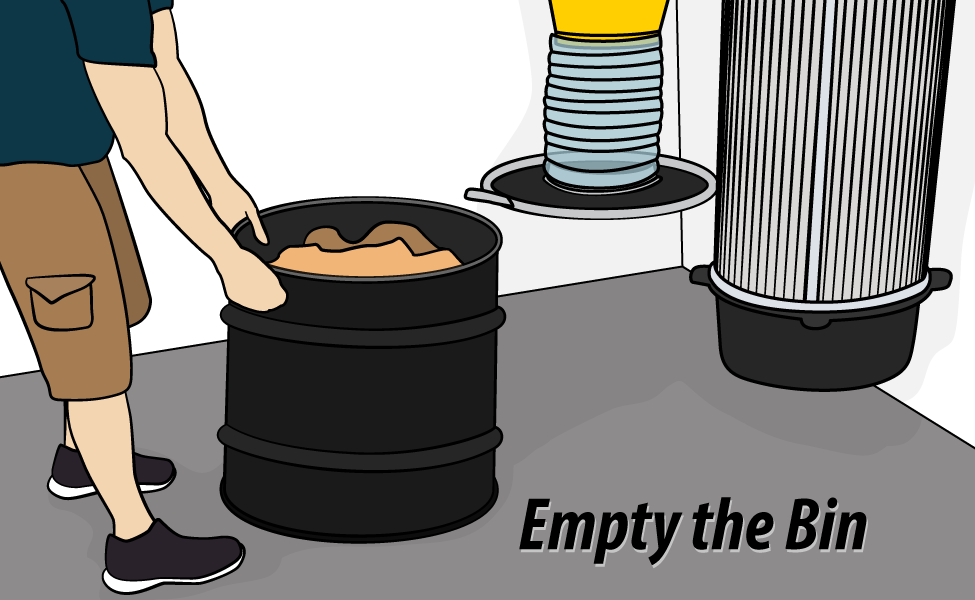

Empty the dust bin out and reattach to the cyclone when ready.

Convenient Pull-Out Dust Bin

Our dust collection bins are made simple for a reason: convenience. With no assembly required, these robust, steel drums are quick and easy to use when disposing of dust and debris. The dust collector comes equipped with a 55 gallon steel drum, ideal for heavy loads of dust within the shop (but keep in mind the weight of a full dust bin!) Drum dollies and bag holding sleeves are also available to make emptying the drum cleaner and more efficient.

Specs

More Information
SKU	XGK050055W
Horsepower	5 hp
Motor Type	U.S. Motor
Motor Service Factor	1.15
Voltage	220-240V
Recommended Breaker Size	30A
Amperage (Typical)	18-23A
Motor FLA	19.5
Phase Option	Single-Phase (Pre-Wired)
Frequency	60Hz
Power Connector Type	3 Bare Wires
Power Cord Length	7 feet
Impeller Type	Single-piece, backward inclined, non-sparking/non-ferrous
Impeller Size	15" Dia.
Real CFM Rating	1,395 Actual CFM at 1.9" WC
Free Fan CFM Rating	3,250 CFM
Maximum Suction	23" WC
Max. Open Blast Gates	3 Gates
Noise Level	75-87 dBA at 10 ft
Motor Speed Type	Variable
Cyclonic Separation Efficiency	Removes over 99% of fine wood dusts
Filter Type	HEPA Grade ePTFE Media
Filtration Efficiency	E12 Minimum Efficiency Rating
Total Filtration Area	110 sq ft
Replacement Filter	#FCS183600HF
Waste Capacity	55 Gallons
Remote Control	Included
Remote Control Part #	See Item #AMR000000 for additional or replacement keyfobs.
Primary Build Materials	Cold Rolled Steel
Welding	Seam Welded
Static Resistance Rating	Conductive (Metal)
Color	Yellow
Inlet Size	7" Dia.
Outlet Size	Square ID: 7-3/8"(W) x 6-3/8"(H)
Discharge Size	9" Dia.
Width	48"
Depth	30"
Height	106"
Height to Center of Inlet	78.5"
Actual Weight (lbs)	340
Contents	Blower Motor Assembly, Magnetic Starter, SMART Boost Controller, Fan Housing, Cyclone Separator, Filter Plenum, Stacking Sound Filter, FlameGuard Cartridge Filter, Steel Wall Mounting Bracket, Steel Dust Bin, Bin Level Indicator, Remote Control, Hardware
Manufacturer	Oneida Air Systems
Manufacturer Statement	Made in USA
Warranty Information	2 Year Limited Warranty
Certifications	NFPA Compliance Ready (See Reference Guide). cETLus certified to both U.S. and Canadian product safety standards by an NRTL. Conforms to UL-1017 and Can/CSA-C22.2 No. 243 standards.
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.

Documents

FAQ

My SMART Boost dust collector won't turn on. What do I do?

If you're having issues turning on your SMART Boost dust collector, the VFD may need to be reset. Click "Read More" for instructions.

I hear a loud bang/pop from the dust bin when I turn the system on, is this normal?

If the drum of your system is empty, you may hear a loud noise as the metal flexes from the suction pressure created when turning the system on. This sound will stop when material is within the drum and is to be expected.

Is it normal for my dust collector to run hot?

Yes. All motors generate heat, which is why it is essential to have proper ventilation around the motor for cooling.

Can this system be connected to a GFCI breaker?

Yes. All of our dust collection systems can be used in conjunction with GFCI (Ground Fault Circuit Interrupter) type breakers, as well as the older style of HACR (Heating, Air Conditioning, and Refrigeration) type breakers.

How do I adjust the bin level sensor?

Adjust the detection of the dust level of the infrared sensor by rotating the Level Set Screw. Turning it towards the plus sign (+) will lengthen the range of the sensor; turning it towards the minus sign (-) will shorten the sensor’s range. DO NOT force the level set screw.

What's the recommended range I should set the bin level sensor at?

We recommend that the sensor be set to alert at a distance of 4-6". To test the range, place your hand in front of the sensor, while the Dust Sentry is plugged in, to represent the dust drum filling up.

Why does my SMART system run after I shut it off?

The SMART system has a cooling fan on the VFD that runs after the system is shut off. Depending on how long the system has been on or if the outside temperature is hotter than normal, it may run for a longer time to cool the motor down. This is a normal function of the system, and it will stop automatically.

Can I lengthen the Bin Level Sensor power cord?

The 8' power cord can be extended to any length using wire of the same gauge or higher.

Can Dust Sentry Panel be mounted outside in weather?

No, there is electrical components inside and if it got wet there is a potential it would short circuit.
