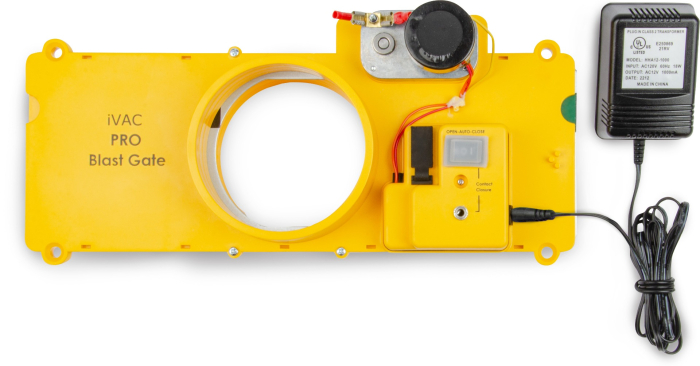

iVAC Pro Automated Plastic Blast Gate with AC Adapter

Skip to the beginning of the images gallery

ARS-G

iVAC Pro Automated Blast Gates

Only %1 left

As low as $139.95

Programmable and electrically driven blast gates. Controlled automatically via iVAC Pro tool sensors or manually by remote control. Features self-cleaning mechanism and LED open/close indicator. Available in common 4" (plastic or steel) and 6" (steel) duct sizes.

Overview

The Ultimate Convenience for Your Dream Shop

Blast gates let you control the airflow of your dust collection system in order to achieve maximum suction at a desired tool station. But with today's large tools and high performance dust collection systems, multiple blast gates often need to be open at once or frequently closed and opened. In most instances you also need to ensure at least one gate is always open to avoid deadheading the system and collapsing the ductwork.

So, how do you take account of all of these issues in a modern, well equipped workshop? iVAC's automated blast gates let you control your airflow precisely and automatically – taking the hassle out of manually working the gates and ensuring your tools have the suction they need when they need it.

Overview of the Automated iVAC Pro Blast Gates

Benefits & Features

Electrically driven and programmable. Can be controlled:
- Automatically - when the power tool is turned on, the iVAC Tool Interface (Pro Tool Plus Sensor) sends a wireless signal instructing the iVAC Pro Switch to turn on the Dust Collector, and this same signal is used to instruct the blast gate to open. When the power tool turns off it instructs the blast gate to close.
- By Remote Control - An iVAC Pro Remote Control is used to send the Open and Close commands to the blast gate as needed. Multiple remotes can be programmed for various blast gates.
- By Wired Remote Cable - A 10-foot wired cable (sold separately) can be connected to the blast gate and positioned near the tool to control the gate as needed.
Optional One Blast Gate Always Open feature to accommodate high performance systems.
Straightforward installation with each gate powered by a 115V AC adapter.
Choice of lightweight and economical plastic model (4" only) or commercial, steel model for fireproof/grounded ducting paths.
Large 4" or 6" collars easily attach to existing ductwork (5" adapter available).
Self cleaning mechanism removes dust buildup from the removable gate plate.
Bright LED indicates the Open/Closed status of the gate from afar.
Opens/Closes in 2 seconds (4" models) or 3.5 seconds (6" models).
Built-in motor overload protection.

Specs

More Information
SKU	ARS-G
Ductwork Type	Standard
Connection Type	Male
Primary Build Materials	Steel, ABS Plastic
Power Connector Type	NEMA 1-15
Power Cord Length	6-1/2'
Remote Control	Sold Separately
Remote Control Part #	#ARS115240
Outer Diameter	Choose model to see specification.
Width	Choose model to see specification.
Height	Choose model to see specification.
Depth	Choose model to see specification.
Contents	Blast Gate, Collar, AC Adapter
Manufacturer	BCTINT Ltd
Warranty Information	1 Year Limited Warranty
Product Warning	Intended for indoor use in dry locations only. The Blast Gate should be grounded to avoid build-up of static charge.
Proposition 65	WARNING: This product may expose you to chemicals, including Nickel (metallic), which is known to the State of California to cause cancer or birth defects or reproductive harm.
